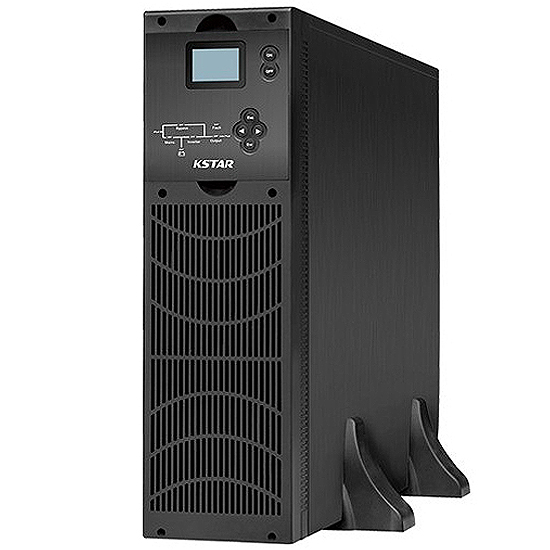

Kstar UDC 9110 H - Onduleur UPS Monophasé de 10 KVA PF= 1,0. Avec Rack Batterie d’autonomie 60min
Chargement... SPECIFICATIONS
MODEL UDC9110H One
Capacity (VA/Watts) 10K/10K
INPUT
Nominal Voltage 220/230/240Vac
Operating Voltage range 120~276Vac
Frequency range 50Hz:45~55Hz; 60Hz:54~66Hz (auto sensing)
Power Factor ≥0.99
Bypass voltage range Max. voltage: 220V: +25% (optimal +10%, +15%, +20%)
230V: +20% (optimal +10% +15%)
240V: +15% (optimal +10%)
Min. voltage: -45% (optimal -20%, -30%)
Bypass frequency range Frequency protection range: ±10%
ECO range Same as the bypass
Harmonic distortion (THDi) <3% (100% linear load)
Generator input Support
OUTPUT
Output Voltage 220/230/240Vac
Power Factor 1
Voltage Regulation ±1%
Frequency
Line mode (Synchronized range) ±1%/ ±2%/ ±4%/ ±5%/ ±10% of the rated frequency (optimal)
Bat. mode (50/60±0.1) Hz
Crest Factor 3:1
Harmonic Distortion (THDv) ≤2% with linear Load
≤ 5% with non-linear load
Efficiency >93%
BATTERY
Battery voltage ±96/108/120Vdc (optimal)
Capacity (standard unit) 12V-7Ah/9Ah
Typical recharging time 6~8 hours (to 90% of full capacity)
Charging current 1A (Standard unit); Long run unit Max. current 10A (charging current can be set according to battery
capacity installed)
SYSTEM FEATURES
Transfer time Mains to battery: 0ms; Mains to bypass: 0ms
Overload
Line Mode Load ≤110%: last 10min, ≤130%: last 1min, >130% turn to bypass mode immediately
Bypass Mode 80A(Breaker)
Short circuit Hold whole system
Overheat Line mode: Turn to bypass; Bat. Mode: Shut down UPS immediately
Battery low Alarm and switch off
Self-diagnostics Upon power on and software control
Battery Advanced battery management
Audible & Visual alarms Line failure, Battery low, Over load, System fault
LED & LCD display Line mode, Bat. mode, Eco mode, Bypass mode, Battery under voltage, Overload 1 UPS fault
LCD display Input voltage, Input frequency, Output voltage, Output frequency, Load percentage, Battery voltage,
Inner temperature & Remaining battery backup time
Communication interface RS232, USB, SNMP card(optional), Parallel card(optional), Replay card (optional)
ENVIRONMENT
Operating temperature 0°C~40°C
Storage temperature -25°C~55°C
Humidity range 0-95% (non-condensing)
Altitude <1500m
Noise Level <55dB
PHYSICAL
Dimension W×H×D (mm) Standard model: 191*460*720; long run model: 191*405*330
Net Weight (kg) Standard model: 61kg; long run model: 12kg
STANDARDS
Safety IEC/EN62040-1,IEC/EN60950-1
EMC IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6, IEC61000-4-8
